| C25、D25液壓缸系列 | | |
| |

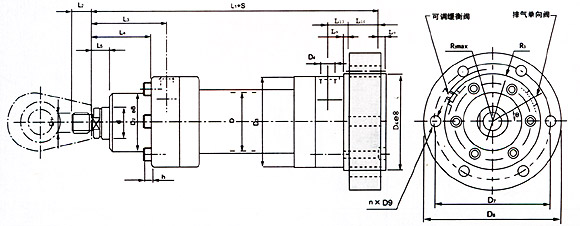

| ▲C25TF型尺寸表： |
|
D
|
40
|
50
|
63
|
80
|
100
|
125
|
140
|
160
|
180
|
200
|
220
|
250
|
280
|
320
|
360
|
400
|
|
d
|
22/28
|
28/36
|
36/45
|
45/56
|
56/70
|
70/90
|
90/100
|
100/110
|
110/125
|
125/140
|
140/160
|
160/180
|
180/200
|
200/220
|
220/250
|
250/280
|
|
L(緩衡長度)
|
20
|
20
|
25
|
30
|
35
|
50
|
50
|
55
|
65
|
70
|
80
|
90
|
90
|
100
|
110
|
120
|
|
D1
|
Ⅰ型
|
M16×1.5
|
M22×1.5
|
M30×2
|
M36×2
|
M48×2
|
M56×2
|
M72×3
|
M80×3
|
M100×3
|
M110×3
|
M125×4
|
M125×4
|
M140×4
|
M160×4
|
M180×4
|
M200×4
|
|
Ⅱ型
|
M16×1.5
|
M22×1.5
|
M28×1.5
|
M35×1.5
|
M45×1.5
|
M58×1.5
|
M65×1.5
|
M80×2
|
M100×2
|
M110×2
|
M120×3
|
M120×3
|
M130×3
|
-
|
-
|
-
|
|
Ⅲ型
|
M18×2
|
M24×2
|
M4830×2
|
M39×3
|
M50×3
|
M64×3
|
M80×3
|
M90×3
|
M100×3
|
M110×4
|
M120×4
|
M120×4
|
M150×4
|
M150×4
|
M180×4
|
M200×4
|
|
D2
|
50
|
64
|
75
|
95
|
115
|
135
|
155
|
180
|
200
|
215
|
245
|
280
|
305
|
350
|
400
|
450
|
|
D3
|
80
|
100
|
120
|
140
|
170
|
205
|
225
|
265
|
290
|
315
|
355
|
400
|
440
|
500
|
550
|
620
|
|
D4
|
公制
|
M18×1.5
|
M22×1.5
|
M27×2
|
M27×2
|
M33×2
|
M42×2
|
M42×2
|
M42×2
|
M50×2
|
M50×2
|
M50×2
|
M50×2
|
M50×2
|
M50×2
|
M60×2
|
M60×2
|
|
英表
|
G3/8"
|
G1/2"
|
G3/4"
|
G3/4"
|
G1"
|
G1 1/4 "
|
G1 1/4"
|
G1 1/4"
|
G1 1/2 "
|
G1 1/2 "
|
G1 1/2 "
|
G1 1/2 "
|
G1 1/2 "
|
G1 1/2 "
|
G2"
|
G2"
|
|
D6
|
90
|
110
|
130
|
145
|
175
|
210
|
230
|
275
|
300
|
320
|
370
|
415
|
450
|
510
|
570
|
640
|
|
D7
|
108
|
130
|
155
|
170
|
205
|
245
|
265
|
325
|
360
|
375
|
430
|
485
|
520
|
600
|
660
|
740
|
| D8 |
130 |
160 |
185 |
200 |
245 |
295 |
315 |
385 |
420 |
445 |
490 |
555 |
590 |
680 |
740 |
830 |
| D9 |
9.5 |
11.5 |
14 |
14 |
18 |
22 |
22 |
26 |
26 |
33 |
33 |
39 |
39 |
45 |
45 |
52 |
| L1 |
256 |
264 |
297 |
310 |
370 |
432 |
475 |
535 |
585 |
615 |
720 |
744 |
839 |
935 |
1020 |
1120 |
|
L2
|
Ⅰ型
|
22
|
30
|
40
|
50
|
63
|
75
|
85
|
95
|
112
|
112
|
125
|
125
|
140
|
160
|
180
|
200
|
|
Ⅱ型
|
16
|
22
|
28
|
35
|
45
|
58
|
65
|
80
|
100
|
110
|
120
|
120
|
130
|
-
|
-
|
-
|
|
Ⅲ型
|
30
|
35
|
45
|
55
|
75
|
95
|
110
|
120
|
140
|
150
|
160
|
160
|
190
|
200
|
220
|
260
|
|
L3
|
76
|
80
|
89.5
|
87.5
|
112.5
|
129.5
|
142.5
|
160
|
175
|
180
|
220
|
230
|
260
|
295
|
320
|
360
|
|
L4
|
54
|
58
|
67
|
65
|
85
|
97
|
105
|
120
|
130
|
135
|
155
|
165
|
170
|
195
|
210
|
230
|
|
L5
|
17
|
20
|
20
|
20
|
30
|
30
|
30
|
35
|
35
|
40
|
40
|
40
|
40
|
40
|
50
|
50
|
|
L9
|
23
|
23
|
22.5
|
32.5
|
27.5
|
32.5
|
37.5
|
40
|
50
|
50
|
65
|
65
|
90
|
100
|
110
|
130
|
|
L10
|
35
|
40
|
45
|
60
|
65
|
70
|
75
|
85
|
95
|
105
|
125
|
140
|
150
|
175
|
200
|
220
|
|
L13
|
28
|
32.5
|
40
|
50
|
62.5
|
70
|
82
|
95
|
113
|
125
|
142.5
|
160
|
180
|
200
|
230
|
260
|
|
R2
|
28
|
32.5
|
40
|
50
|
62.5
|
65
|
77
|
88
|
103
|
115
|
132.5
|
150
|
170
|
190
|
215
|
245
|
|
R3
|
56.5
|
61
|
75.5
|
81.5
|
99
|
113
|
133
|
149
|
172.5
|
182.5
|
210
|
230
|
261
|
287
|
330
|
360
|
|
R3
|
53
|
57.5
|
70.5
|
76.5
|
81
|
107
|
123
|
139
|
158.5
|
168.5
|
192
|
212
|
239
|
265
|
302
|
332
|
|
θ
|
30°
|
30°
|
30°
|
30°
|
30°
|
30°
|
45°
|
45°
|
45°
|
45°
|
45°
|
45°
|
54°
|
54°
|
30°
|
30°
|
|
n
|
6
|
6
|
6
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
8
|
8
|
8
|
8
|
10
|
10
|
|
h
|
10
|
12.5
|
15
|
15
|
20
|
25
|
25
|
30
|
30
|
37.5
|
37.5
|
45
|
45
|
52.5
|
52.5
|
60
|
|
△,kg/mm
|
0.013/
0.016
|
0.02/
0.023
|
0.026/
0.034
|
0.037/
0.05
|
0.057/
0.068
|
0.076/
0.096
|
0.127/
0.139
|
0.136/
0.149
|
0.171/
0.192
|
0.219/
0.244
|
0.282/
0.319
|
0.424/
0.466
|
0.476/
0.523
|
0.612/
0.663
|
0.743/
0.829
|
0.934/
1.031
|
|
j
kg
|
ⅠⅡⅢ
|
9.2/
9.3
|
14.3/
14.4
|
21.9/
22.1
|
29.9/
30.1
|
52/
53
|
87/
88
|
121/
122
|
188/
189
|
250/
252
|
305/
307
|
458/
460
|
610/
613
|
836/
840
|
1230/
1233
|
1611/
1619
|
2270/
2277
|
|
AⅠ、BⅡ、CⅢ
|
9.9/
10
|
15.3/
15.4
|
23.3/
23.5
|
32.3/
32.5
|
56/
57
|
95/
96
|
131/
132
|
205/
206
|
276/
278
|
335/
278
|
504/
507
|
657/
660
|
924/
928
|
1349/
1352
|
1751/
1759
|
2459/
2464
|
液壓缸重量：Q≈J+△.S KG
|
|
|
|
